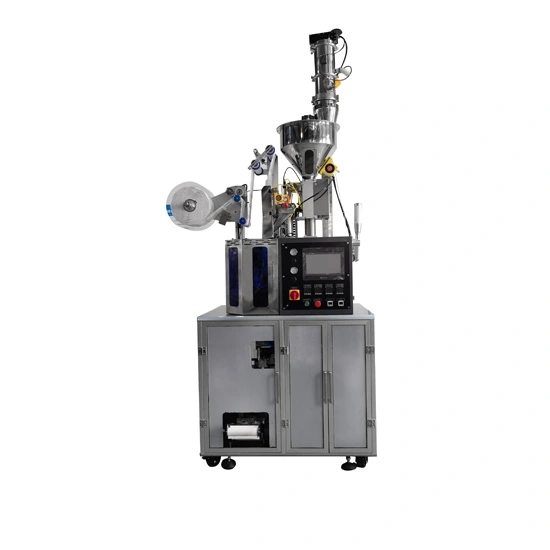

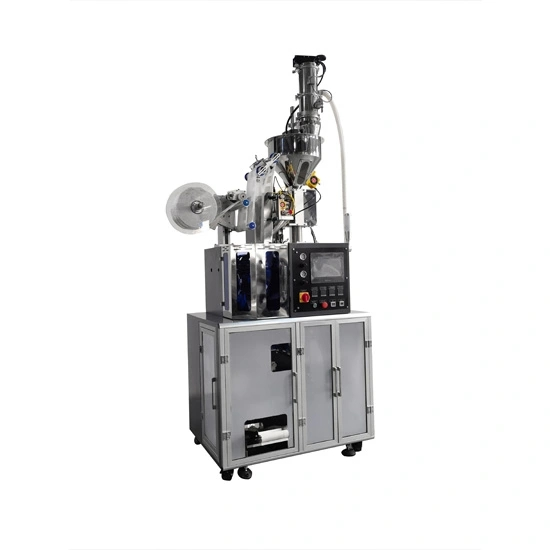

Model: Drip Coffee Bag Packaging Machine FG-60
Product Performance
Max. BPM: Up To 60 bags/min
Packing Range: 5-15g
Packing Accuracy: ±0.15g
Inner bag size: 74mm*90mm
Outer bag size: 120mm*100mm
The machine adopts automatic following, automatic tracking, automatic positioning, and other systems; no excessive intervention in parameter setting or adjustment is required during working; With One-click power-on, one person can operate multiple units; This type of drip coffee packaging machine is equipped with a fully automatic loading system and uses a special surface treatment process for slide doser unloading to ensure gram weight accuracy.
| Model | FG-60 | ||
| Measurement Method | Sliding Volume | ||
| Production Efficiency | 50-60 bags/min | ||
| Packing Weight | 5-15g/Pack (Special Specifications Can Be Customized) | ||
| Packing Accuracy | ±0.2g (Depending On Material Conditions) | ||
| Control System | Servo Controller + Color Touch Screen | ||
| Inner Bag Size | Length: 50-75mm; Width 50-100mm (Special Specifications Can Be Customized) | ||
| Outer Bag Size | Length 85-120mm; Width 75-100mm (Special Specifications Can Be Customized) | ||
| Common Inner Bag Dimensions | 74*90mm | ||
| Common Outer Bag Dimensions | 100*120mm | ||
| Inner Bag Material | Non-Woven Fabric, Nylon Filter Cloth, Corn Fiber | ||
| Outer Packaging Materials | Composite Film, Pure Aluminum Film, Paper Film And Other Heat-Sealable Films | ||
| Inner Bag Sealing Method | Ultrasonic Sealing | Inner Bag Sealing Form | Three Side Sealing |
| Outer Bag Sealing Method | Heat Seal | Outer Bag Sealing Form | Three Side Sealing |
| Power Supply | 3.5kW/220V/50HZ | Air Consumption/Pressure | 0.6m³/min/8 bar |
| Machine Dimensions (L.W.H) | 1216*1003*2694mm | Machine Weight | 800kg |
| Optional Devices | Vacuum Feeder | Nitrogen Generator | TTO Printer |
Fully Automatic Follow-up System
Sealing strength ≥ 1.5 times higher than average
The coffee machine packaging's Measured Pulling Force ≥4N
Stable performance with 6 servos
Automatic alarm and shutdown for production and safety errors
Closed working conditions, safe and reliable
Higher nitrogen filling residual oxygen rate than industry standard
Using screw rod adjustment, easy to operate
Customizable language operating system
