Model: Pyramid Tea Bag Packing Machine With Hand Filling Conveyor MD-160S-06
Product Performance
Max. BPM: Up To 50 bags/min
Packing Range: 1-20g
Packing Accuracy: ±0.2g

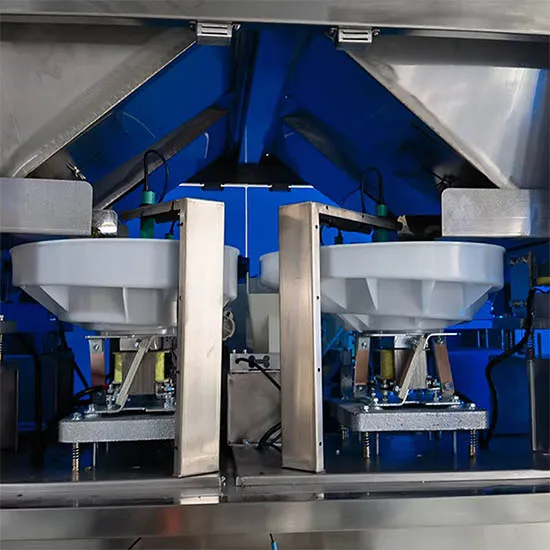

Measuring Method: Load-Cell Weigher
This machine adopts electronic load-cell weighing scales, suitable for packing various green tea, black tea, flower tea, fruit tea, Chinese tea, healthy tea, herbs, granules etc. Multi ingredients can be packed and can be replaced easily and quickly. It can be used to pack pyramid tea bags and rectangular tea bags, specially designed for nylon mesh, PET, non-woven fabrics, and corn fibre materials. The whole tea bag packaging machine can automatically complete functions with feeding, measuring, bag making, sealing, cutting, and counting.
| Model | MD-160S-06 | ||
| Measurement Method | Load-Cell Weigher | ||
| Production Efficiency | 30-50 bags/min | ||
| Inner Bag Size | 120mm, 140mm, 160mm（Customizable） | ||
| Packing Accuracy | ±0.2g (Depending On Material Conditions) | ||
| Power Supply | 2kW/220V | Air Consumption/Pressure | 6-8bar/0.4m³/min |
| Machine Dimensions (L.W.H) | 4108*1260*1959mm | Machine Weight | 378kg |
1. Max. BPM up to 50.
2. One-touch switch for pyramid and rectangular tea bag.
3. Quick material replacement, multiple ingredients can be packed.
4. Automatic alarms and shutdown for production and safety errors.
5. Closed working environment, safe and reliable.
6. Convenient for more multi formulas.
