Model: Pyramid Tea Bag Packing Mching MD-160-06
Product Performance
Max. BPM: Up To 60 bags/min
Packing Range: 1-20g
Packing Accuracy: ±0.2g

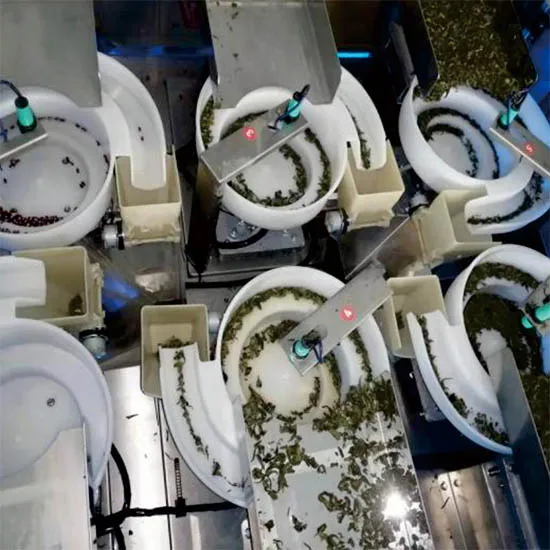

Measuring Method: Load-Cell Weigher
The MD-160-06 pyramid tea bag packing machine features an electronic load cell for precise measurement, making it suitable for packaging materials such as green tea, black tea, flower tea, coffee, Chinese tea, health tea, herbal tea, and granules. The MD-160-06 triangle tea bag packaging machine is designed for seamless material changes, maximizing efficiency and flexibility in tea bag production. This type of triangle tea bag packaging machine can make both rectangular and triangular tea bags from Nylon, PET, Nonwoven, and PLA films. This triangle tea bag packaging machine works automatically with feeding, counting, bagging, sealing, cutting, etc.
| Model | MD-160-06 | ||
| Measurement Method | Load-Cell Weigher | ||
| Production Efficiency | 50-60 bags/min | ||
| Inner Bag Size | 120mm, 140mm, 160mm（Customizable） | ||
| Packing Accuracy | ±0.2G (Depending On Material Conditions) | ||
| Power Supply | 1.5kW/220V | Air Consumption/Pressure | 6-8bar/0.3m³/min |
| Machine Dimensions (L.W.H) | Machine Weight | 420kg | |
1. The MD-160-06 pyramid tea packing machine is designed for high efficiency, operating at up to 50 BPM.
2. Triangle and flat tea bags can be switched with a single click on the pyramid tea packing machine.
3. The pyramid tea packing machine has multiple formulas for packing tea bags made of various materials.
4. The tea pouch packaging machine incorporates an automatic alarm and stop down feature for production and safety issues.
5. The teabag packing machine operates under closed conditions, making it safe and reliable.
6. PLA materials are available on working such pyramid tea bag packaging machine.
